Archambault 40 Variants

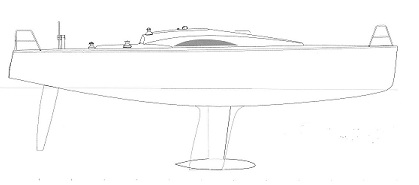

The A40 has been built in two similar looking but very different boats. The original, designed in 2003, was not optimized for IRC. In 2007 the boat was redesigned and designated the A40RC. Still later optimization shows a lighter, bulb keel.
| I | ISP | J | JC | P | E | Draft | Beam | Displacement | ||
| A40 | 53.22 | 53.22 | 14.78 | 14.78 | 48.55 | 17.06 | 7.81 | 12.30 | 13054 | |
| A40RC | 50.87 | 57.91 | 15.42 | 17.23 | 51.18 | 17.75 | 8.14 | 12.30 | 14660 | |
| A40RC Bulb | 50.87 | 57.91 | 15.42 | 17.23 | 51.18 | 17.75 | 7.81 | 12.30 | 13778 |
.
